Hydrotime Code
UNI T1 KODU
ISO KODU
Technicial Specifications
| 30.61 | UNI-T1 | T2 | ISO |
| Pump Code | 16300610166/99 | 16300610169 | 16300610366/99 |
| A (mm) | 176.5 | 176.5 | 188.5 |
| B (mm) | 115 | 115 | 127 |
| Weight (kg) | 11 | 11.3 | 13 |
| C (Oil Inlet) | R 1″ | ||
| D (Oil Outlet) | R 1″ | ||
| Fluit | Mineral oil based hydraulic fluids to ISO/DIN and fire resistant fluids | ||
Hydrotime Code
UNI T1 KODU
16300510166 CW Sağ
16300510199 CCW Sol
16300510169 CW CCW Çift Yön
ISO KODU
16300510366 CW Sağ
16300510399 CCW Sol
16300510369 CW CCW Çift Yön
Technicial Specifications
30.51 | UNI-T1 | T2 | ISO |
Pump Code | 16300510166/99 | 16300510169 | 16300510366/99 |
A (mm) | 175.5 | 175.5 | 187.5 |
B (mm) | 112.5 | 112.5 | 124.5 |
Weight(kg) | 10.5 | 11 | 12.5 |
C (Oil Inlet) | R 1″ | ||
D (Oil Outlet) | R 1″ | ||
Fluit | Mineral oil based hydraulic fluids to ISO/DIN and fire resistant fluids |
Hydrotime Code
UNI T1 KODU
16300820166 CW Sağ
16300820199 CCW Sol
16300820169 CW CCW Çift Yön
ISO KODU
16300820366 CW Sağ
16300820369 CW CCW Çift Yön
Technicial Specifications
30.82 | UNI-T1 | T2 | ISO |
Pump Code | 16300820166/99 | 16300820169 | 16300820366/99 |
A (mm) | 191.5 | 191.5 | 203.5 |
B (mm) | 121.5 | 121.5 | 133.5 |
Weight (kg) | 11.6 | 12 | 13.8 |
C (Oil Inlet) | R 1 1/4″ | ||
D (Oil Outlet) | R 1″ | ||
Fluit | Mineral oil based hydraulic fluids to ISO/DIN and fire resistant fluids |
Hydrotime Code
Description
Our company manufactures 85 cc axial piston pumps with a reliable and durable structure, ensuring a long service life. We always strive to maintain competitive prices and high-quality production. While providing solutions tailored to our customers’ needs, we also aim for 100% customer satisfaction. To obtain more information about the prices of 85 cc axial piston pumps and detailed product information, please feel free to contact our company.
USES
It is used for the transportation and pressurization of high-pressure and high-volume fluids. They are also preferred in many industrial processes due to their precise control and high efficiency.
Tecnical Specifications
| Pump Code | Clockwise CW 16220850366 | Counter Clockwise CCW 16220850399 |
| Pump Type | 85 Lt | 85 Lt |
| A (mm) | 128 | 128 |
| B (mm) | 164 | 164 |
| C (mm) | 297 | 297 |
| D (mm) | 131 | 131 |
| E (mm) | 194 | 194 |
| F (mm) | 117 | 117 |
| G (mm) | 100 | 100 |
| K (Oil Inlet) | R 1 1/2″ | R 1 1/2″ |
| L (Oil Inlet) | R 1″ | R 1″ |
| Fluid | Mineral Based Hydraulic Oil | |
Hydrotime Code
Description
Our company manufactures 45 cc bent axis piston pump with a reliable and durable structure, ensuring a long service life. We always strive to maintain competitive prices and high-quality production. While providing solutions tailored to our customers’ needs, we also aim for 100% customer satisfaction. To obtain more information about the prices of 45 cc bent axis piston pump and detailed product information, please feel free to contact our company.
USES
It is used for the transportation and pressurization of high-pressure and high-volume fluids. They are also preferred in many industrial processes due to their precise control and high efficiency.
Tecnical Specifications
| Pump Code | Clockwise CW 16220450366 | Counter Clockwise CCW 16220450399 |
| Pump Type | 45 Lt | 45 Lt |
| A (mm) | 114 | 114 |
| B (mm) | 139 | 139 |
| C (mm) | 237 | 237 |
| D (mm) | 107 | 107 |
| E (mm) | 164 | 164 |
| F (mm) | 102 | 102 |
| G (mm) | 99 | 99 |
| K (Oil Inlet) | R 1 1/4″ | R 1 1/4″ |
| L (Oil Inlet) | R 3/4″ | R 3/4″ |
| Fluid | Mineral Based Hydraulic Oil | |
Hydrotime Code
Description
Our company manufactures 105 cc bent axis piston pump with a reliable and durable structure, ensuring a long service life. We always strive to maintain competitive prices and high-quality production. While providing solutions tailored to our customers’ needs, we also aim for 100% customer satisfaction. To obtain more information about the prices of 105 cc bent axis piston pump and detailed product information, please feel free to contact our company.
USES
It is used for the transportation and pressurization of high-pressure and high-volume fluids. They are also preferred in many industrial processes due to their precise control and high efficiency.
Tecnical Specifications
| Pump Code | Clockwise CW 16221050366 | Counter Clockwise CCW 16221050399 |
| Pump Type | 105 Lt | 105 Lt |
| A (mm) | 128 | 128 |
| B (mm) | 164 | 164 |
| C (mm) | 297 | 297 |
| D (mm) | 131 | 131 |
| E (mm) | 194 | 194 |
| F (mm) | 117 | 117 |
| G (mm) | 100 | 100 |
| K (Oil Inlet) | R 1 1/2″ | R 1 1/2″ |
| L (Oil Inlet) | R 1″ | R 1″ |
| Fluid | Mineral Based Hydraulic Oil | |
Hydrotime Code
Description
Our company manufactures 65 cc bent axis piston pump with a reliable and durable structure, ensuring a long service life. We always strive to maintain competitive prices and high-quality production. While providing solutions tailored to our customers’ needs, we also aim for 100% customer satisfaction. To obtain more information about the prices of 65 cc bent axis piston pump and detailed product information, please feel free to contact our company.
USES
It is used for the transportation and pressurization of high-pressure and high-volume fluids. They are also preferred in many industrial processes due to their precise control and high efficiency.
Tecnical Specifications
| Pump Code | Clockwise CW 16220650366 | Counter Clockwise CCW 16220650399 |
| Pump Type | 65 Lt | 65 Lt |
| A (mm) | 115 | 115 |
| B (mm) | 152 | 152 |
| C (mm) | 253 | 253 |
| D (mm) | 118 | 118 |
| E (mm) | 164 | 164 |
| F (mm) | 108 | 108 |
| G (mm) | 100 | 100 |
| K (Oil Inlet) | R 1 1/4″ | R 1 1/4″ |
| L (Oil Inlet) | R 3/4″ | R 3/4″ |
| Fluid | Mineral Based Hydraulic Oil | |
Hydrotime Code

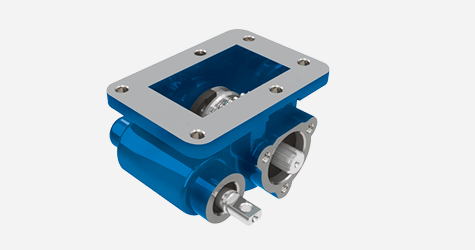

Main Gearbox
Some Tools Used
Technicial Specifications
| Torque | 48,9 Kgm |
| Power (100 rpm) | 34,5 Hp |
| Speed | 513 rpm |
| Ratio | 1/1 |
| Weight | 3,5 kg |
| Mounting | Rear |
| Control | Pneumatic |
| Rotation | Right – ISO |
Hydrotime Code
Main Gearbox
ZF16S251-221-151-150-130 ZF S5/AK/6S-120-111-110-92 GP ZF S5/AK/6S-90-80-70-66-65-55-50-42-36-35 ZF ECONOMIT 9S75-9S109-16S109 ZF NEW ECOSPLIT 16S1620TD-16S1820TO – 18S1820TD-16S2220TD 16S220TO – 16S2520TO – 16S2023TDL
Some Tools Used
Technicial Specifications
| Torque | 48,9 Kgm |
| Power (100 rpm) | 34,5 Hp |
| Speed | 513 rpm |
| Ratio | 1/1 |
| Weight | 3,5 kg |
| Mounting | Rear |
| Control | Pneumatic |
| Rotation | Right – ISO |
Hydrotime Code
Main Gearbox
MYY-5T / MYY-6P / MYY-5A
Some Tools Used
4.3 NPR 70 ISUZU CHAMPION (2005) NKR 66 E-NPR 66 P-NQR 71-R
Technical Specifications
| Torque | Kgm |
| Power (100 rpm) | Hp |
| Speed | 625 rpm |
| Ratio | 1/1,03 |
| Weight | 13 kg |
| Mounting | Left |
| Control | vacuum |
| Rotation | Right – UNI |

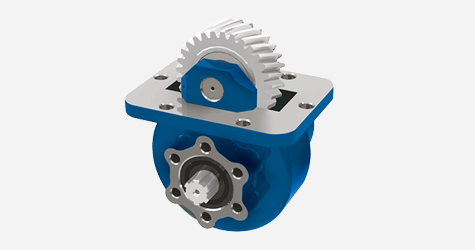

Hydrotime Code
MEKANİK KODU
VAKUM KODU
Main Gearbox
Some Tools Used
Technicial Specifications
| orque | 18,2 Kgm |
| Power (100 rpm) | 15 Hp |
| Speed | 600 rpm |
| Ratio | 1/1,31 |
| Weight | 11 kg |
| Mounting | Left |
| Control | Mechanic |
| Rotation | Right – UNI |
Hydrotime Code
MEKANİK KODU
VAKUM KODU
Main Gearbox
Some Tools Used
Technicial Specifications
| Torque | 24,2 Kgm |
| Power (100 rpm) | 11,7 Hp |
| Speed | 350 rpm |
| Ratio | 1/1 |
| Weight | 8,5 kg |
| Mounting | Left |
| Control | Mechanic |
| Rotation | Right – UNI |
Hydrotime Code
Adapters are components used to provide compatibility between different types of connections and ensure the proper functioning of hydraulic systems. Adapters are commonly used during the design and assembly of hydraulic systems to join different pipe or hose types or make different connection elements compatible.
Hydraulic adapters are widely used in a wide range of industries. They are needed in places where hydraulic systems are used, such as automotive, construction, agriculture, mining, maritime, energy, and industrial manufacturing sectors.
Hydraulic adapters facilitate the efficient and secure operation of systems by providing connections between pumps, valves, cylinders, filters, and other hydraulic components.
Our company specializes in the manufacturing of reliable and durable hydraulic adapters, providing dependable solutions for your hydraulic systems. With a commitment to 100% customer satisfaction, we adhere to international standards in production and strive to serve our customers with the highest level of service. For information on hydraulic piston pump adapter prices and tailored solutions for your needs, please contact our company.
Hydrotime Code

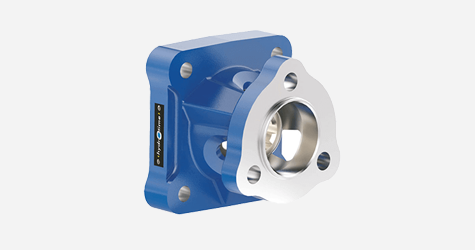

8 Spline 6-Hole Flange
A durable flange coupling designed for PTO (Power Take-Off) or gearbox output systems, featuring an 8-spline shaft interface and a 6-hole bolt pattern for secure mounting.
Specifications
Spline Type: 8 Spline (DIN/ISO standard compliant)
Mounting: 6-hole flange
Material: High-strength alloy steel (optional variants available)
Typical Use: Compatible with ZF gearboxes, PTO units, and heavy-duty commercial vehicles
Mounting Interface: Rear output, compatible with pneumatic or mechanical control systems
Applications
Used in conjunction with gearboxes such as:
ZF 16S series
ECOSPLIT, ECONOMIT models
PTO retrofits for MAN, Mercedes, Ford Cargo, BMC, etc.
CODE
12100400554 Standard
FAMILY DESCRIPTION
Electric tipping valve operated by switch to suit light duty tipper trucks. Open center hydraulic scheme according to CE standards.- Built-in check and adjustable relief valves.- Either Chassis or tank (DSE kit) mounting options.- Mechanical End-of-stroke integrated into the relief valve.- Ready for pressure signal switch mounting.- Galvanized body and nickel spool.- Compact size.- Guaranteed for oil temperature range -25 to 80 °C, viscosity range 12 to 100 cSt and oil filtering 25µm.
DESCRIPTION
Type:FE-40
VOLTAGE:12 V
WEIGHT
3,7500 Kg
CODE
12100400563 Standard
FAMILY DESCRIPTION
Electric tipping valve operated by switch to suit light duty tipper trucks. Open center hydraulic scheme according to CE standards.- Built-in check and adjustable relief valves.- Either Chassis or tank (DSE kit) mounting options.- Mechanical End-of-stroke integrated into the relief valve.- Ready for pressure signal switch mounting.- Galvanized body and nickel spool.- Compact size.- Guaranteed for oil temperature range -25 to 80 °C, viscosity range 12 to 100 cSt and oil filtering 25µm.
DESCRIPTION
Type:FE-40
VOLTAGE:24 V
WEIGHT
3,7750 Kg
Hydrotime Code
Overview

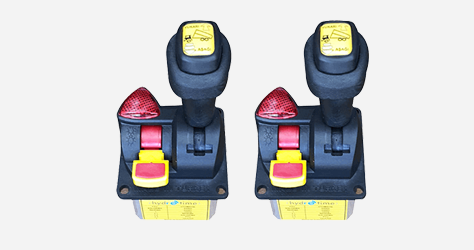

Pneumatic valves are types of valves used to control and regulate processes using compressed air or gas. They play an important role in pneumatic systems for controlling and directing the flow of compressed air or gas. Pneumatic valves are used as part of automated control systems, providing the ability to open, close, or direct the flow of compressed air or gas.
Specifications
Our company specializes in the manufacturing of long-lasting and high-quality pneumatic valves, always prioritizing affordability and quality. We adhere to international standards in production and strive to prioritize customer satisfaction. With a wide range of products, our company offers pneumatic valves in different types and sizes. For information on pneumatic valve prices and solutions tailored to your specific needs or to obtain further information, please contact our company.
Uses
It is widely used in Industrial sectors.
Applications
Technicial Specifications
| Max. Pressure | 10 Bar |
| Min. Pressure | 5 Bar |
| Air Inlet | G 1/8 |
| Air Exhaust | M5 |
| Lowering Connection | G 1/8 |
| Tipping Connection | G 1/8 |
Code
FAMILY DESCRIPTION
DESCRIPTION
LT:2
Displacement:1
MOTOR:12V-800W
WEIGHT
7,0000 Kg
Hydrotime Code
61104050402
Specifications

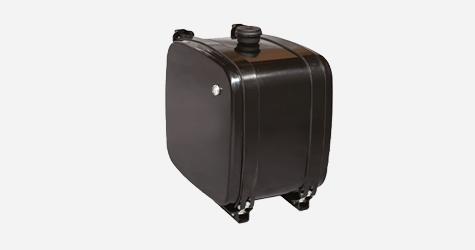

Oil tanks are specialized containers used for the storage and distribution of oil in industrial sectors. These tanks are designed to ensure the safe storage, transportation, and use of oils.
Uses
Oil tanks are commonly used in various sectors such as automotive, machinery manufacturing, energy, agriculture, construction, and maritime. In the automotive industry, they are used to store various oils like engine oil, hydraulic oil, and transmission oil. In industrial sectors, they are used for the storage and distribution of oils used in lubrication systems of machinery.
Technicial Specifications
| Code | Size / Feature |
| 61104050402 | 40x50x40x-65 LT |
| 61104050504 | 40x50x50-80 LT |
| 611040501006 | 40x50x60-100 LT |
| 61108120409 | 56x64x40-120 LT |
| 61108120514 | 56x64x50-160 LT |
| 61108121018 | 56x64x60-190 LT |
| 61111140413 | 62x67x40-150 LT |
| 61111140517 | 62x67x50-180 LT |
| 61111141022 | 62x67x60-220 LT |
| 61111170416 | 71x71x40-170 LT |
| 61111170523 | 71x71x50-225 LT |
| 61111171027 | 71x71x60-270 LT |
Overview:
The wet kits from Interpump Hydraulics are fully integrated hydraulic systems designed for rigid trucks. These kits include all essential components required for tipping or hydraulic-powered applications—offering a plug-and-play solution for OEMs and aftermarket installers.
Key Features:
Includes PTO, pump, tank, valve, hoses, and fittings
Engineered for rigid chassis vehicles
Compact, durable, and easy to install
High compatibility with major truck brands (e.g., Volvo, Iveco, Mercedes)
Available in custom configurations for different applications
Applications:
Construction dumpers
Refuse collection trucks
Municipal service vehicles
Agricultural transport
