INSTRUMENTATION PRODUCTS

INSTRUMENTATION VALVES

INSTRUMENTATION VALVES

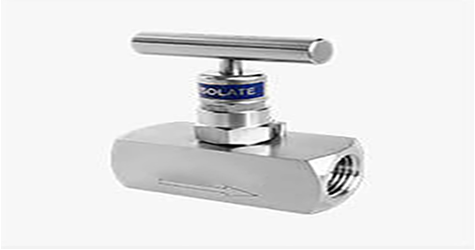

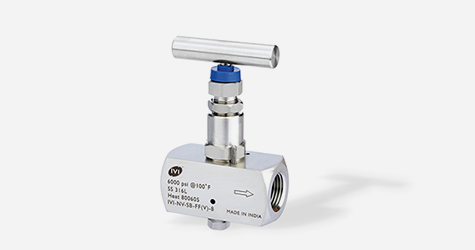

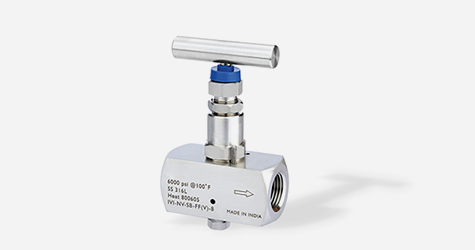

NEEDLE  VALVES

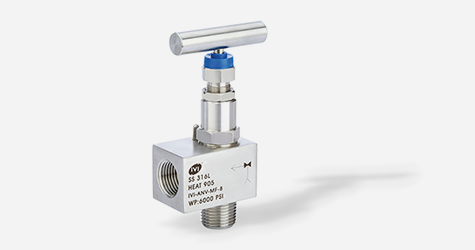

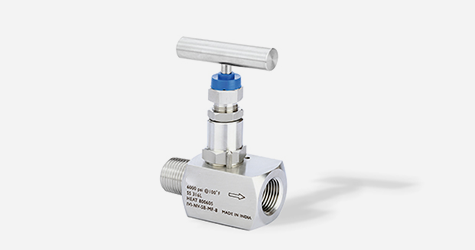

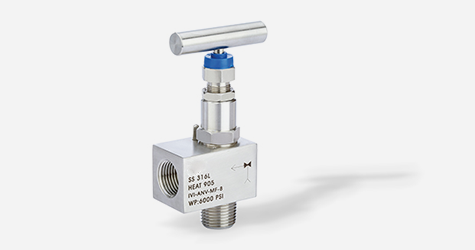

ANGLE TYPE SERIES

Compact, high-performance valves. Factory tested. Cleaned. Ready.

Pressure

  • 6000 PSI (PTFE packing)
  • 10,000 / 15,000 / 20,000 PSI available on request
  • Grafoil for high temperatures
  • Pneumatic test at 1000 PSI (Nitrogen gas)
  • Hydrostatic seat test at 1.1× working pressure
  • Hydrostatic shell test at 1.5× working pressure


Connections
Standard: NPT
Optional: BSP / BSPT / ANPT threads available on request

Materials
SS316, SS316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

Certification
3.1 certificates furnished
3.2 certificates available on request

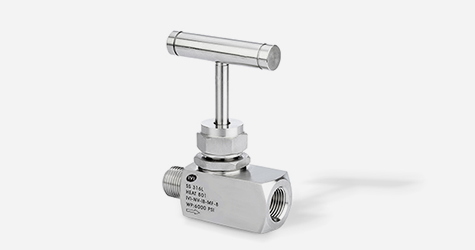

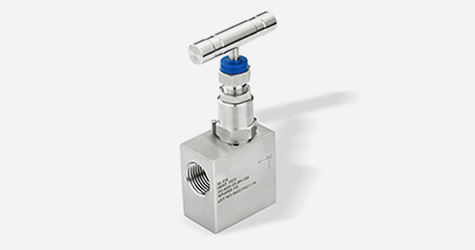

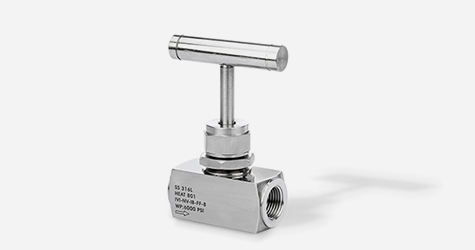

INTEGRAL BONNET SERIES

Bar stock or forged body construction, Available in straight or angle pattern

Pressure & Testing

  • Standard working pressure: 6000 PSI with PTFE packing
  • Grafoil offered for higher temperatures
  • Pneumatic seat test at 1000 PSI (Nitrogen gas)
  • Hydrostatic seat test at 1.1× working pressure
  • Hydrostatic shell test at 1.5× working pressure
  • All valves 100% factory tested



Connections
Standard NPT end connections
BSP / BSPT / ANPT / Tube OD available on request

Materials
SS 316, SS 316L, Duplex, Super Duplex
Hastelloy, Inconel, Monel
NACE MR-0175 compliant materials available on request
Heat code traceability

Cleaning & Quality
All components ultrasonically cleaned prior to assembly

Square Body Series

Designed to prevent media loss from failed connections and ensure uni-directional fluid flow in chemical processing, power generation, and oil & gas industries.

Pressure

  • Standard working pressure: 6000 PSI
  • Maximum working pressure: 10,000 PSI available on request
  • Cracking and reseal performance tested on every valve
  • Cracking pressure options from 1/3 to 25 PSI

Connections
Variety of end connections: NPT, BSPP, BSPT, Tube Ends
Sizes range from 1/8” to 1”

Materials
Standard materials: SS 316, Brass, Hastelloy C 276, Inconel 625, Monel 400
Also available in SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, and Monel

Traceability & Quality
Heat code traceability provided
Every valve factory tested

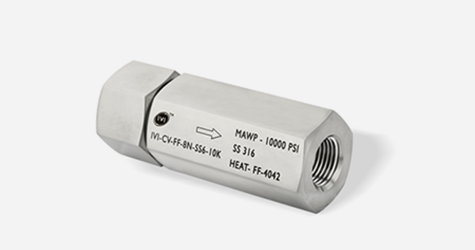

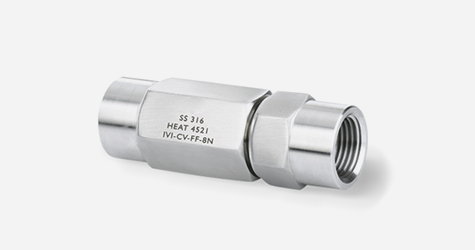

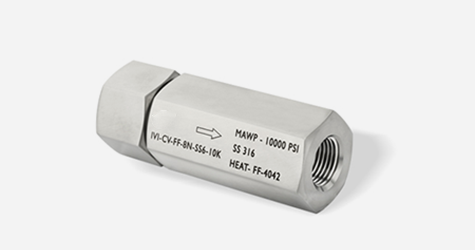

CHECK VALVE

Designed to prevent media loss from failed connections and provide uni-directional flow control in chemical processing, power generation, and oil & gas industries.

Pressure

  • Standard working pressure: 6000 PSI
  • Maximum working pressure: 10,000 PSI (on request)
  • Cracking and reseal performance tested on every valve
  • Cracking pressure options: 1/3 to 25 PSI



Connections & Sizes

End connections: NPT, BSPP, BSPT, Tube Ends
Sizes range from 1/8” to 1”

Materials
Standard: Stainless Steel 316, Brass, Hastelloy C 276, Inconel 625, Monel 400
Also available: SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

Traceability & Quality
Heat code traceability included
Factory tested for reliability

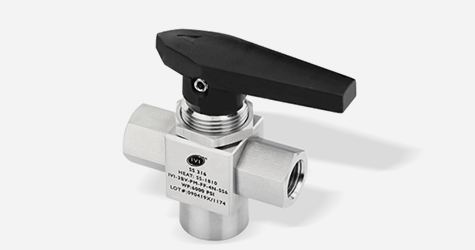

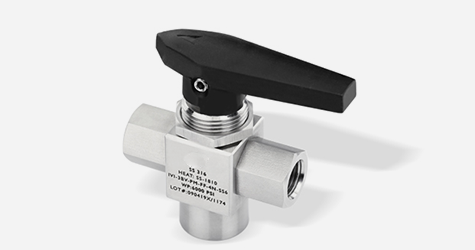

BALL VALVE

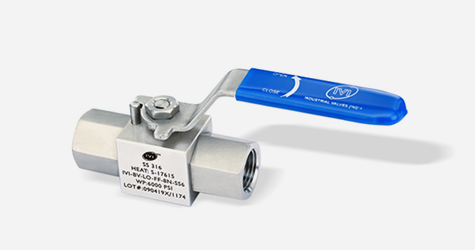

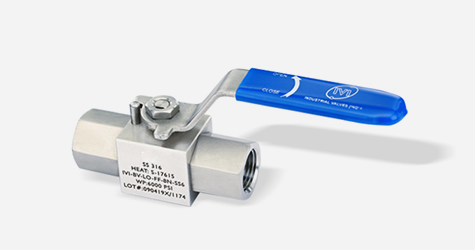

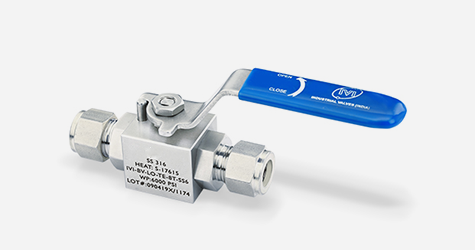

LEVER OPERATED BALL VALVES

Reliable high-pressure shut-off valves with a floating ball design for leak-proof performance and low pressure drop.

Pressure & Testing

  • Standard working pressure: 6000 PSI
  • Maximum working pressure: 10,000 PSI (on request)
  • Factory tested pneumatically with Nitrogen gas at 1000 PSI
  • Leak test at seat and stem with max allowable leak rate: 0.1 sec/min


Connections
Available from ¼” to 1”
End connections: Screwed and Tube End configurations

Materials
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

Certifications & Compliance
Supplied to meet the latest revision of NACE MR 01-75
Heat code traceability provided

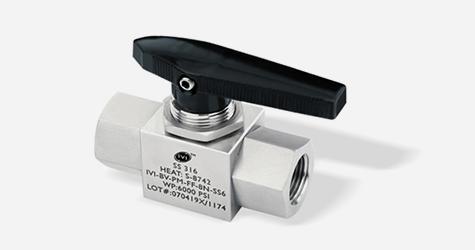

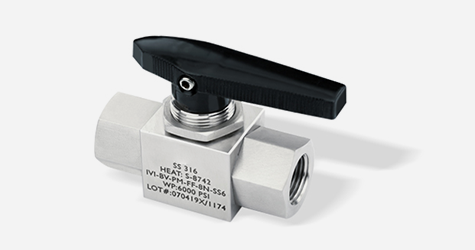

PANEL MOUNTED BALL VALVES

Reliable high-pressure shut-off valves with a floating ball design for leak-proof performance and low pressure drop.

Pressure & Testing

  • Standard working pressure: 6000 PSI
  • Maximum working pressure: 10,000 PSI (on request)
  • Factory tested pneumatically with Nitrogen gas at 1000 PSI
  • Leak test at seat and stem with max allowable leak rate: 0.1 sec/min

Connections
Available from ¼” to 1”
End connections: Screwed and Tube End configurations

Materials
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

Certifications & Compliance
Supplied to meet the latest revision of NACE MR 01-75
Heat code traceability provided

IVI INDUSTRIAL VALVES

DBB/SBB VALVES

Compact isolation valves designed for safe, low-leakage performance in critical applications.

Design & Features

  • Low operating torque for easy handling
  • Anti-blowout valve stems
  • Anti-tamper / locking arrangement for secure operation


Pressure & Sizes
Sizes up to 2″
Pressure rating: 2500# as per ASME B16.5

Fire Safety & Emissions
Fire-safe design (API 607 / API 6FA compliant)
Designed for low fugitive emissions (ISO 15848-2 / MESC 77/312)

Materials, Certification & Quality
Available in: SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel, Carbon Steel
3.1 certificates furnished
3.2 certificates available on request

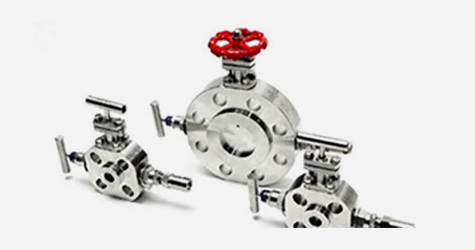

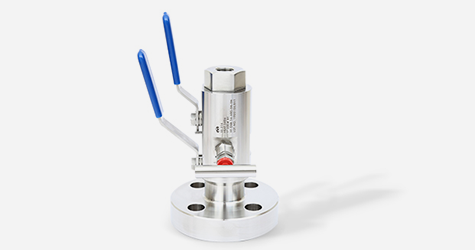

DOUBLE BLOCK AND BLEAD MANIFOLDS

Efficiently combines isolation and venting in one compact valve body—eliminating the need for extra tubing and fittings.

Design & Function

  • Block valve isolates downstream fluids
  • Bleed valve exhausts upstream fluids
  • Enables safe removal of instruments without disturbing piping
  • ¼” NPT vent plug located 90° left; can be replaced with exhaust piping
  • Blow-out proof stem provides secondary seal in fully open position
  • Stem threads are rolled for strength and smooth operation
  • Vinyl dust cap for bonnet and stem (non-packing)



Pressure Rating
Suitable for 10,000 PSI at 100°F
20,000 PSI version available on request

Materials
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

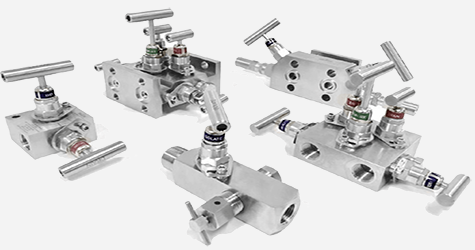

MANIFOLD VALVES

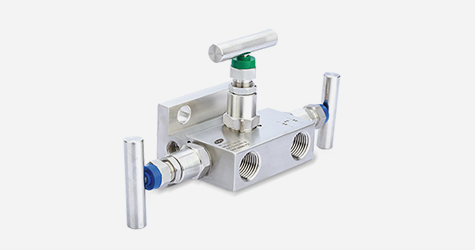

3 WAY MANIFOLD

A complete range of high-performance tubing and fittings engineered for secure, leak-free connections in demanding instrumentation and process applications.

Design & Configuration

  • ½” Female NPT connections at a center distance of 54 mm (2-1/8″)

  • Valve configuration: Two block valves and one equalizer valve

  • Mounting brackets and accessories available on request

Pressure & Testing

  • Standard working pressure: 6000 PSI (with PTFE packing)

  • Grafoil packing available for high-temperature applications

  • Pneumatic seat test at 1000 PSI using nitrogen gas

  • Hydrostatic shell test at 1.5× working pressure
  • 100% factory tested for performance


Meterials

  • Available in:
    SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

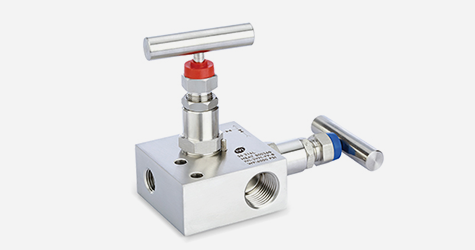

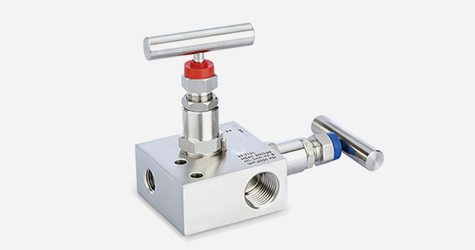

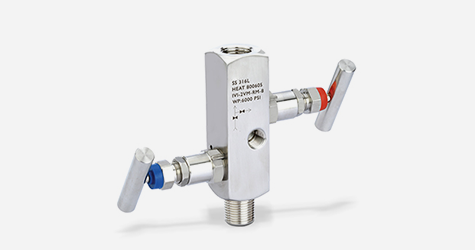

2 WAY MANIFOLD

Compact and reliable solution for blocking, bleeding, and calibrating pressure transmitters—integrating multiple components into a single valve body.

Design & Configuration

  • Integrates tee, calibration valve, isolation valve, and tubing/fittings in one unit
  • Standard process connection: ½” Female NPT
  • Valve configurations available: 2, 3, and 5 valve options
  • Mounting types: Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct Mount, Integral Mount, Base Vent
  • Mounting brackets and accessories available on request

Pressure & Testing

  • Pneumatic seat test at 1000 PSI with nitrogen gas
  • Hydrostatic shell test at 1.5× working pressure
  • 100% factory tested

Materials
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

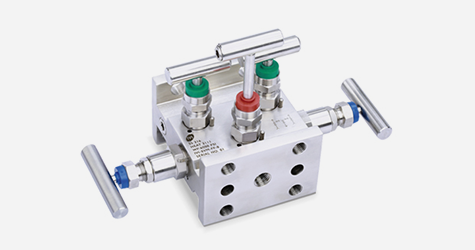

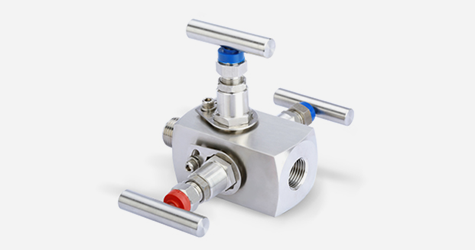

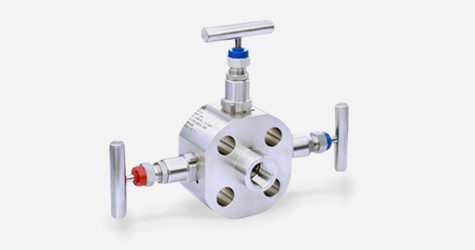

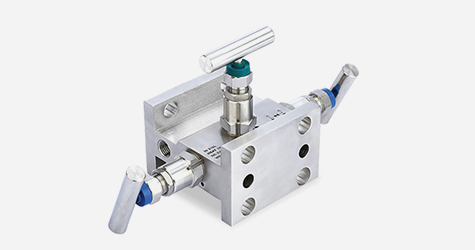

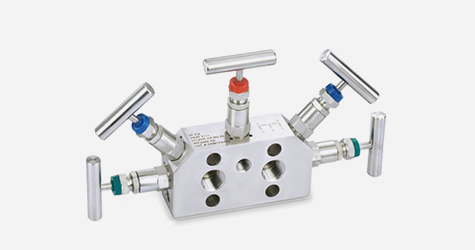

5 WAY MANIFOLD

Engineered for critical instrumentation setups, allowing full control for isolation, equalization, venting, and calibration of pressure transmitters.

Design & Configuration

  • ½” Female NPT connections at 54 mm (2 1/8″) center distance
  • Two standard connection types:

• Two block, two equalizer, and one bleed valve with two vent connections
• Two block, two bleed, and one equalizer valve

  • Mounting brackets and accessories available on request


Pressure & Testing

  • Standard working pressure: 6000 PSI (with PTFE packing)
  • Grafoil packing available for higher temperature applications
  • Pneumatic seat test at 1000 PSI using nitrogen gas
  • Hydrostatic shell test at 1.5× working pressure
  • 100% factory tested


Materials
Available in:
SS 316, SS 316L, Duplex, Super Duplex, Hastelloy, Inconel, Monel

ASTEC

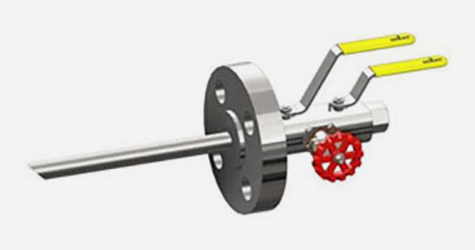

DOUBLE BLOCK & BLEAD VALVES



Compact and reliable valve solutions for isolation, sampling, and venting in instrumentation and piping systems.

Applications

  • Instrumentation
  • Injection
  • Sampling
  • Piping


Design & Configuration

  • Single / Double Ball & Needle/Ball Bleed Valve
  • Floating & Trunnion Ball Design Soft
  • Metal Seat with Flange or Thread ends


Connection
1/4 to 6” upto 2500#

Confirm & Tested
ISO 5208, ISO 15848, MESC SPE 77/300 and MESC SPE 77/312

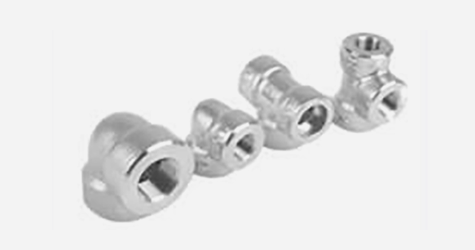

INST. TUBING & TUBE FITTINGS

Instrumentation Tubing & Tube Fittings

  • Seamless Instrumentation Tubing (Straight & Coiled)
  • Double & Single Ferrule Compression Tube Fittings
  • Precision Pipe Fittings (Rated up to 15,000 PSI)
  • Flange Connector Tube Fittings
  • Medium & High Pressure Tube Fittings (10,000 / 15,000 PSI)


Specifications

  • Size Range: 1/8” to 2”
  • Pressure Rating: Up to 2500#
  • Temperature Rating: Up to 550°C
  • Standard: ASTM F1387
  • Type Tested for Performance & Reliability

INST. VALVES & MANIFOLDS

Instrumentation Valves & Manifolds

  • Needle Valves
  • Gauge Root Valves
  • Ball Valves – 2, 3, 4, 5, 6, & 7-Way Configurations
  • Manifold Valves – 2, 3, 4, 5-Way & MESC Design
  • Check & Relief Valves


Specifications:

  • Connection Sizes: 1/8” to 2”
  • Pressure Rating: Up to 2500#
  • Temperature Rating: Max 550°C
  • Class A
  • Fugitive Emission Tested (per international standards)

TUBINGS & FITTINGS

TUBINGS & FITTINGS

IMPERIAL RANGE

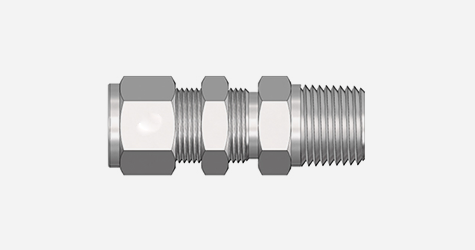

bulkhead male connector

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Bulkhead Male Connector

Part NumberDimensions (mm)
Tube O.D.NPT Pipe threadLCDL1RW HEX
IVI-1T-BMC-1N1/161/161.190.681.038.53.385/16
IVI-1T-BMC-2N1/161/81.270.681.116.53.387/16
IVI-2T-BMC-2N1/81/81.831.231.571.97.381/2
IVI-3T-BMC-2N3/161/81.891.261.6341.00.389/16
IVI-4T-BMC-2N1/41/81.951.311.6551.02.385/8
IVI-4T-BMC-4N1/41/42.1321.311.8421.02.565/8
IVI-4T-BMC-6N1/43/82.1621.311.8721.02.5611/16
IVI-4T-BMC-8N1/41/22.3741.312.0841.02.757/8
IVI-5T-BMC-2N5/161/82.081.421.7791.12.3811/16
IVI-5T-BMC-4N5/161/42.271.421.9661.12.5611/16
IVI-6T-BMC-2N3/81/82.081.441.7881.15.383/4
IVI-6T-BMC-4N3/81/42.2651.441.9751.15.563/4
IVI-6T-BMC-6N3/83/82.2651.441.9751.15.563/4
IVI-6T-BMC-8N3/81/22.481.442.2191.15.757/8
IVI-8T-BMC-4N1/21/42.4941.652.0941.25.5615/16
IVI-8T-BMC-6N1/23/82.4941.652.0941.25.5615/16
IVI-8T-BMC-8N1/21/22.7121.652.3121.25.7515/16
IVI-8T-BMC-12N1/23/42.7221.652.3221.25.751-1/8
IVI-10T-BMC-6N5/83/82.6281.682.2281.28.561-1/16
IVI-10T-BMC-8N5/81/22.8161.682.4161.28.751-1/16
IVI-12T-BMC-8N3/41/23.001.872.6011.47.751-3/16
IVI-12T-BMC-12N3/43/43.001.872.6011.47.751-3/16
IVI-14T-BMC-12N7/83/43.312.092.9131.69.751-3/8
IVI-16T-BMC-12N13/43.542.273.0061.78.751-5/8
IVI-16T-BMC-16N113.722.273.1941.78.941-5/8

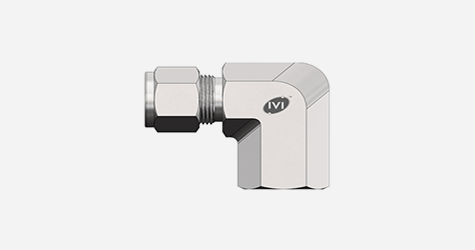

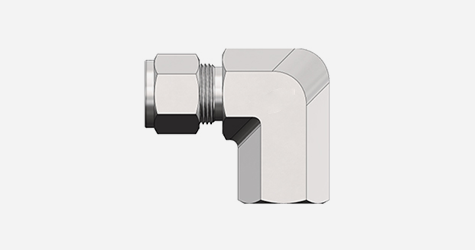

female elbow

We Are One Of The Leading Manufacturers, Suppliers, Traders And Distributors, Of This Highly Commendable Range Of Female Elbow

Part NumberDimensions (mm)
Tube O.D.NPT Pipe threadLSL1W HEX
IVI-1T-FE-1N1/161/160.750.500.607/16
IVI-1T-FE-2N1/161/80.790.750.649/16
IVI-2T-FE-2N1/81/80.970.750.719/16
IVI-2T-FE-4N1/81/41.100.880.843/4
IVI-3T-FE-2N3/161/81.000.750.749/16
IVI-4T-FE-2N1/41/81.060.750.779/16
IVI-4T-FE-4N1/41/41.200.880.9111/16
IVI-4T-FE-6N1/43/81.250.880.9613/16
IVI-4T-FE-8N1/41/21.361.131.071
IVI-5T-FE-2N5/161/81.130.750.849/16
IVI-5T-FE-4N5/161/41.240.880.9411/16
IVI-6T-FE-2N3/81/81.200.750.915/8
IVI-6T-FE-4N3/81/41.260.880.9711/16
IVI-6T-FE-6N3/83/81.310.881.0213/16
IVI-6T-FE-8N3/81/21.421.131.131
IVI-8T-FE-4N1/21/41.420.881.0213/16
IVI-8T-FE-6N1/23/81.420.881.0213/16
IVI-8T-FE-8N1/21/21.531.131.131
IVI-10T-FE-6N5/83/81.500.881.1015/16
IVI-10T-FE-8N5/81/21.571.131.171-1/16
IVI-12T-FE-8N3/41/21.571.131.171-1/16
IVI-12T-FE-12N3/43/41.761.251.361-3/8
IVI-14T-FE-12N7/83/41.761.251.361-3/8
IVI-16T-FE-12N13/41.931.251.451-3/8
IVI-16T-FE-16N112.021.501.531-5/8

METRIC RANGE

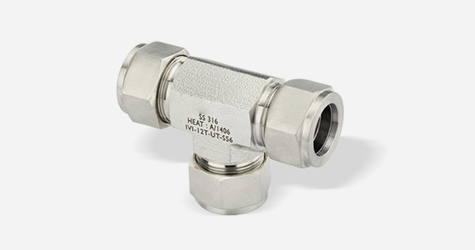

Union Tee – Metric Range

We are one of the leading manufacturers, suppliers, traders, and distributors of this highly commendable range of Union Tee – Metric Range fittings. These tees are precisely engineered for reliable and leak-proof connections in metric tubing systems across various industrial and instrumentation applications.

Technical Specifications

Part NumberTube O.D. (mm)L (mm)L1 (mm)W HEX (Inch)
IVI-2MT-UT222.315.73/8″
IVI-3MT-UT322.315.73/8″
IVI-4MT-UT425.418.81/2″
IVI-6MT-UT62719.61/2″
IVI-8MT-UT829.922.45/8″
IVI-10MT-UT1031.523.911/16″
IVI-12MT-UT123625.913/16″
IVI-16MT-UT1638.828.71″
IVI-18MT-UT1838.829.71-1/16″
IVI-20MT-UT2044.634.51-3/8″
IVI-22MT-UT2244.634.51-3/8″
IVI-25MT-UT2549.136.81-3/8″



Tube End Male Adapter – Metric Range (ISO Tapered Thread)

We are one of the leading manufacturers, suppliers, traders, and distributors of a highly reliable and precision-engineered range of Tube End Male Adapters – Metric Range with ISO Tapered (BSPT) Threads. These adapters are designed for leak-tight connections in hydraulic and instrumentation systems where metric tubing interfaces with tapered pipe threads.

Technical Specifications

Part NumberTube O.D. (mm)BSPT ThreadL (mm)K (mm)R (mm)W HEX (mm)
IVI-3MT-MA-2GT31/829.413.59.712
IVI-4MT-MA-2GT41/829.414.39.712
IVI-6MT-MA-2GT61/83115.99.712
IVI-6MT-MA-4GT61/435.715.914.214
IVI-8MT-MA-AGT81/437.316.714.214
IVI-8MT-MA-6GT83/838.316.814.218
IVI-10MT-MA-4GT101/438.117.514.214
IVI-10MT-MA-6GT103/838.117.514.218
IVI-10MT-MA-8GT101/244.517.519.122
IVI-12MT-MA-2GT121/443.72314.214
IVI-12MT-MA-6GT123/844.52314.218
IVI-12MT-MA-8GT121/249.22319.122
IVI-16MT-MA-2GT161/250.824.619.122
IVI-18MT-MA-12GT183/451.624.619.127
IVI-20MT-MA-2GT201/852.425.419.127
IVI-25MT-MA-16GT25165.931.823.935





Elevate with premium pipes and fittings!

CALL US NOW
