Hydraulic Filters

LEVEL GAUGE

LEVEL GAUGE

LEVEL GAUGE - LG 2



  • ‘O’ RING TYPE CONSTRUCTION

  • 3 SIZES 3″, 5″ & 10″ BETWEEN BOLT CENTRES

  • FOR NON PRESSURISED TANKS ONLY

  • CAN BE MOUNTED ON TAPPED HOLES

  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS

  • MAXIMUM TEMPERATURE 80° C



LEVEL GAUGE - LG 6


  • ‘O’ RING TYPE CONSTRUCTION / STURDY DIE CAST COVER
  • 3 SIZES 3″, 5″ & 10″ BETWEEN BOLT CENTRES
  • FOR NON PRESSURISED TANKS ONLY
  • CAN BE MOUNTED ON TAPPED HOLES
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAXIMUM TEMPERATURE 80° C

Sight Glass - SGP



  • Shock Resistant

  • Transparent polyamide lens

  • Operating team. 80 deg C

  • BUNA – N SEAL

  • Foruse with mineral, Petroleum & Water based fluids

  • Any contact with alcohol or solvents must be avoided

LEVEL GAUGE - LG 7



  • ‘O’ RING TYPE CONSTRUCTION

  • 4 SIZES 3”, 5″,7” & 10″ BETWEEN BOLT CENTRES

  • FOR NON PRESSURISED TANKS ONLY

  • CAN BE MOUNTED ON TAPPED HOLES

    SUITABLE FOR MINERAL / PETROLEUM BASED OILS

    MAXIMUM TEMPERATURE 100° C

    SIDE SLOTS PROVIDED FOR ADDITONAL VIEW

SIGHT GLASS - SG S / A



  • SHOCK RESISTANT

  • STEEL / ALUMINIUM BODY

  • OPERATING TEMP. 80 deg C

  • BUNA – N SEAL / DOWTY SEAL

    FOR USE WITH MINERAL , & PETROLEUM BASED FLUIDS

    ANY CONTACT WITH ALCOHOL OR SOLVENTS MUST BE AVOIDED

Breather

Breather

BREATHER - FSB / TB

  •  CHROME PLATED STEEL CAP – VENTS UNDERNEATH
  • ALTERNATE CAP FINISH BLACK POWDER COATED
  • FILTRATION 40 MICRONS STANDARD / OPTIONAL 10 & 3 MICRONS
  • AIR FLOWS TO 25 CFM ( 750 LPM )
  • RUGGED CAST ALUMINIUM HOUSING ( FOR BM MODEL )
  • METAL STRAINER – STANDARD
  • HARDWARE INCLUDES GASKETS & (10-32) SCREWS

BREATHER - TB

BREATHER DESICCANT - DB

  • FOR REMOVAL OF MOISTURE IN THE AIR
  • FOUR SIZES TO 3000 LPM
  • 2 WAY AIR FLOW SEALED UNIT
  • SILICA GEL CHANGES COLOUR FROM ORANGE TO GREEN
  • MULTI LAYER FILTRATION TO 10 MICRONS
  • OPERATION TEMP ( -20B C TO +80B C )
  • PLASTIC ABS / ACRYLIC CONSTRUCTION

BREATHER - SPIN ON - AB / AB 2

  •  EASILY REPLACEBLE SPIN ON ELEMENT
  • CAST ALUMINIUM HOUSING
  • EXCELLENT ALTERNATIVE TO STANDARD BREATHER
  • MOUNTS ON STANDARD 71.5 MM P.C.D.
  • FLANGE AND SCREW TYPE MOUNTING
  • FILTRATION TO 10 & 25 MICRON LEVEL
  • FOR DUSTY AMBIENT CONDITION e.g. MINING,CONSTRUCTION etc.

BREATHER - ABT / F

  • STURDY ALUMINIUM DIE CAST CONSTRUCTION
  • FILTRATION S.S. 100 MESH STANDARD
  • FOR RUGGED APPLICATION
  • METAL STRAINER STANDARD SUPPLY
  • GASKET AND MOUNTING HARDWARE SUPPLIED
  • OPTIONAL SPLASH GUARD TO MINIMISE SPILLAGE
  • DIP STICK OPTIONAL
  • CONSULT FACTORY FOR OEM BULK CUSTOM REQUIREMENT

BREATHER - FSBA / TBA

  • ALUMINIUM DIE CAST CONSTRUCTION – VENTS UNDERNEATH
  • FILTRATION 40 MICRONS STANDARD / OPTIONAL 10 & 3 MICRONS
  • AIR FLOWS TO 25 CFM ( 750 LPM )
  • RUGGED CAST ALUMINIUM HOUSING ( FOR BM MODEL – OPTIONAL)
  • METAL STRAINER – 4 “ STANDARD ( OPTIONAL 6” & 8” )
  • HARDWARE INCLUDES GASKETS & (10-32) SCREWS

BREATHER - ABP

  • STURDY CONSTRUCTION ( ABS )
  • VENTS UNDERNEATH
  • SPLASH GUARD STANDARD
  • FILTRATION 40 MICRONS
  • SUITABLE FOR MINIATURE POWER PACKS
  • DIP STICK OPTIONAL
  • CONSULT FACTORY FOR OEM BULK CUSTOM REQUIREMENT

BREATHER - MBT / F

  • PLASTIC BREATHER – FOR MOBILE APPLICATION
  • FILTRATION 10 MICRONS STANDARD
  • AIR FLOWS TO 25 CFM ( 750 LPM )
  • RUGGED NYLON HOUSING
  • FILLER STRAINER ( MBF MODEL )
  • HARDWARE INCLUDES GASKET
  • SPLASH GUARD FEATURE STANDARD

STRAINER

STRAINER

SUCTION STRAINER - S C 2

  • REUSABLE STAINLESS STEEL 100 MESH STANDARD
  • STURDY ALL METAL STEEL CONSTRUCTION
  • FILTRATION 149 MICRONS
  • CONTINUOUS EPOXY BOND
  • MAX. WORKING TEMP. 80° C.
  • SUITABLE FOR HYDRAULIC / MINERAL OIL
  • FLEXIBLE MAGNETIC WRAP AVAILABLE

SUCTION STRAINER - S C 3

  • REUSABLE SS 100 MESH / 149 MICRON STD.
  • ALUMINIUM DIE CAST NUT
  • STEEL CAP / SUPPORT TUBE
  • CONTINUOUS EPOXY BOND
  • MAX. WORKING TEMP. 80° C.
  • SUITABLE FOR HYDRAULIC / MINERAL OIL
  • FLEXIBLE MAGNETIC WRAP AVAILABLE

SUCTION STRAINER - SE

  • REUSABLE STAINLESS STEEL 100 MESH / 149 MICRON STANDARD
  • NYLON NUT
  • STEEL CAP / SUPPORT TUBE
  • CONTINUOUS EPOXY BOND
  • MAX. WORKING TEMP. 80° C.
  • SUITABLE FOR HYDRAULIC / MINERAL OIL
  • CONSULT FACTORY -FOR WATER APPLICATION
  • FLEXIBLE MAGNETIC WRAP AVAILABLE

TANK MOUNTED STRAINER - TMA

  • TANK MOUNTED REUSABLE STRAINER
  • SIDE WALL OR TANK TOP MOUNTING
  • FLOWS TO 40 GPM (160 LPM )
  • STAINLESS STEEL PLEATED MEDIA
  • 100 MESH ( 149 MICRON ) STANDARD
  • DIE CAST ALUMINIUM BUSHING WITH O Ring

TANK MOUNTED STRAINER - TMH

  • TANK MOUNTED REUSABLE STRAINER
  • SIDE WALL OR TANK TOP MOUNTING
  • FLOWS TO 40 GPM ( 160 LPM )
  • STAINLESS STEEL PLEATED MEDIA
  • 100 MESH ( 149 MICRON ) STANDARD
  • STEEL HOSE BARB FITTING WITH O Ring

TANK MOUNTED STRAINER - TMS

  • TANK MOUNTED REUSABLE STRAINER
  • SIDE WALL OR TANK TOP MOUNTING
  • FLOWS TO 200 GPM ( 800 LPM )
  • STAINLESS STEEL PLEATED MEDIA
  • 100 MESH ( 149 MICRON ) STANDARD
  • M.S. / C.I. BUSHING

TANK MOUNTED STRAINER - TMSU

  • TANK MOUNTED REUSABLE STRAINER
  • SIDE WALL OR TANK TOP MOUNTING
  • FLOWS TO 40 GPM (160 LPM )
  • STAINLESS STEEL PLEATED MEDIA
  • 100 MESH ( 149 MICRON ) STANDARD
  • STEEL BUSHING WITH O’ Ring

TANK MOUNTED STRAINER - SC2M

FILTERS

FILTERS

FILTER - INLINE SPIN ON - IFR 2

  • DISPOSABLE SPIN ON
  • DIE CAST ALUMINIUM HEAD
  • 9 SIZES FLOWS TO 400 LPM
  • MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
  • BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
  • MAX. TEMP. 80 ° C.
  • FOR USE WITH MINERAL / PETROLEUM BASED OILS

FILTER - INLINE SPIN ON - IFR3

  • DISPOSABLE SPIN ON ELEMENT
  • DIE CAST ALUMINIUM HEAD
  • 5 SIZES FLOWS TO 200 LPM
  • MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
  • BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
  • MAX. TEMP. 80 ° C.
  • FOR USE WITH MINERAL / PETROLEUM BASED OILS

FILTER - INLINE SPIN ON - IFR 4

  • DISPOSABLE SPIN ON ELEMENT
  • DIE CAST ALUMINIUM HEAD
  • 5 SIZES FLOWS TO 70 LPM( RETURN ) / 20 LPM ( SUCTION )
  • MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
  • BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
  • MAX. TEMP. 80 ° C.
  • FOR USE WITH MINERAL / PETROLEUM BASED OILS

FILTER-TANK TOP SPIN ON - TFR3

  • TANK MOUNTED REUSABLE STRAINER
  • SIDE WALL OR TANK TOP MOUNTING
  • FLOWS TO 40 GPM (160 LPM )
  • STAINLESS STEEL PLEATED MEDIA
  • 100 MESH ( 149 MICRON ) STANDARD
  • DIE CAST ALUMINIUM BUSHING WITH O Ring

FILTER - TANK IMMERSED - TIF2

  • DIRECT TANK MOUNTING
  • PRESSURE – MAX. 10 BAR / TEST 20 BAR / BURST 25 BAR
  • ALL ALUMINIUM DIECAST CONSTRUCTION
  • 4 – SIZES FLOWS TO 175 LPM
  • BY PASS STANDARD 1 BAR
  • ELEMENTS REPLACEBLE THROUGH COVER
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAX TEMP. 80 deg C

FILTER - TANK IMMERSED - FIF

  • DIRECT TANK MOUNTING
  • PRESSURE MAX. 10 BAR / TEST 20 BAR / BURST 25 BAR
  • ALL ALUMINIUM DIE CAST CONSTRUCTION
  • 4 SIZES – FLOWS TO 150 LPM
  • BY PASS STANDARD 1 BAR
  • ELEMENTS REPLACEBLE THROUGH COVER
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAX TEMP. 80 deg C

FILTER - TANK / LINE MOUNTED - CFR

  • DIRECT TANK OR LINE MOUNT

  • 6 SIZES – FLOWS TO 850 LPM

  • BYPASS STANDARD 1 BAR RETURN / 0.35 BAR SUCTION

  • ALUMINIUM DIECAST CONSTRUCTION

  • WORKING PRESSURE TO 20 BAR / TEST 30 BAR / BURST 40 BAR

  • CAN BE USED FOR RETURN / SUCTION LINES

  • MAX TEMP. TO 80°C

  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS

FILTER - INLINE - HFR

  • ALUMINIUM DIE CAST CONSTRUCTION
  • 3 BASIC MODELS – FLOWS TO 150 LPM
  • BY PASS STANDARD 1 BAR
  • WORKING PRESSURE TO 20 BAR / TEST 30 BAR / BURST 40 BAR
  • MAX TEMP. TO 80° C
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS

FILTER - TANK IMMERSED - TIFP

  • DIRECT TANK MOUNTING
  • PRESSURE – MAX. 7 BAR / TEST 12 BAR / B. URST 16 BAR
  • ALUMINIUM DIECAST BODY HOUSING / POLYAMIDE G.F. BOWL
  • 5 – SIZES FLOWS TO 175 LPM
  • BY PASS STANDARD 1 BAR
  • ELEMENTS REPLACEBLE THROUGH COVER
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAX. TEMP 80°C

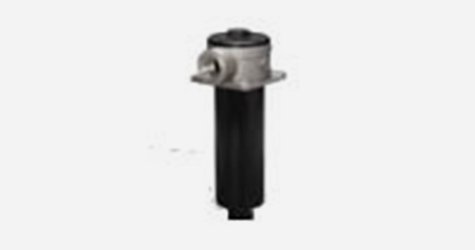

FILTER - TANK IMMERSED - RPF

  • DIRECT TANK MOUNTING
  • PRESSURE – MAX. 7 BAR / TEST 12 BAR / B. URST 16 BAR
  • ALUMINIUM / PLASTIC CONSTRUCTION
  • 3 SIZES FLOW TO 150 LPM
  • BY PASS STANDARD 1 BAR
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAX. TEMP 80°C

FILTER - TANK IMMERSED - SPF

  • DIRECT TANK MOUNTING
  • PRESSURE – MAX. 7 BAR / TEST 12 BAR / B. URST 16 BAR
  • ALUMINIUM / PLASTIC CONSTRUCTION
  • 3 SIZES FLOW TO 150 LPM
  • BY PASS STANDARD 1 BAR
  • SUITABLE FOR MINERAL / PETROLEUM BASED OILS
  • MAX. TEMP 80°C

FILTER-TANK MOUNTED - JFR

  • DIRECT TANK MOUNTING – FLOW IN – TO OUT
  • 6 SIZES – FLOWS TO 450 LPM
  • BY PASS 1 BAR (15 PSI ) STANDARD
  • ALUIMINIUM DIE CAST HOUSING
  • MAX TEMP 80°C
  • ELEMENT KIT OPTIONAL
  • MAGNET BANK & DIFFUSER TUBE OPTIONAL
  • WORKING PRESSURE 10 BAR / TEST PRESSURE 15 BAR / BURST PRESSURE 20 BAR

GAUGE INDICATORS - GR / ER

CLOGGING INDICATOR – ELECTRICAL

  • MICRO SWITCH MAX. 3A – 250 V AC
  • TEST PRESSURE 10 BAR
  • WORKING TEMPERATURE TO + 85° C

FILTERS WITH BREATHER

FILTERS WITH BREATHER

FILTER-TANK MOUNTED - JFR1B

  • DIRECT TANK MOUNTING – FLOW IN – TO OUT
  • 3 SIZES – FLOWS TO 170 LPM
  • ALUIMINIUM DIE CAST HOUSING – BUILT IN INTEGRAL BREATHER
  • MAX TEMP 80°C – BY PASS 1 BAR (15 PSI) STANDARD
  • 4 BOLT TANK MOUNTING / ( OPTIONAL 2 BOLT MOUNTING )
  • MAGNET BANK & DIFFUSER TUBE OPTIONAL
  • WORKING PRESSURE 10 BAR / TEST PRESSURE 15 BAR / BURST PRESSURE 20 BAR

FILTER - INLINE SPIN ON - IFR3

  • DISPOSABLE SPIN ON ELEMENT
  • DIE CAST ALUMINIUM HEAD
  • 5 SIZES FLOWS TO 200 LPM
  • MAX. PRESSURE 10 BAR / TEST 15 BAR / BURST 20 BAR
  • BY PASS STANDARD 1 BAR ( SUCTION 0.2 BAR )
  • MAX. TEMP. 80 ° C.
  • FOR USE WITH MINERAL / PETROLEUM BASED OILS

ACCESSORIES

ACCESSORIES

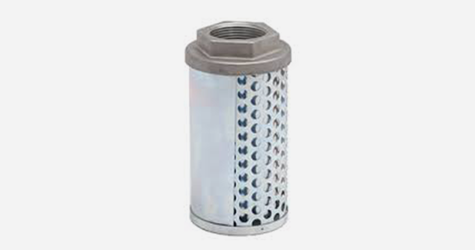

DIFFUSER - R D 3

  • USED IN RETURN LINE
  • REDUCES DISCHARGE VELOCITY IN TWO STAGES
  • MINIMISES TURBULENCE AND FOAMING
  • THEREBY REDUCES AERATION / NOISE LEVEL
  • MUST BE BELOW OIL LEVEL
  • CAN ELIMINATE BAFFLE PLATE IN TANK
  • CONSULT FACTORY FOR OPTIONAL ALL STEEL CONSTRUCTION

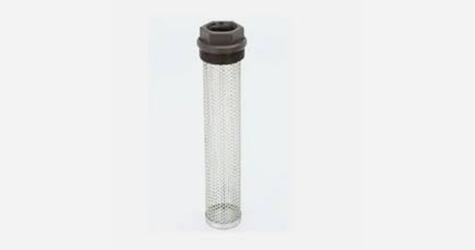

TANK MOUNTED DIFFUSER - TMAD

  • TANK MOUNTED DIFFUSER
  • SIDE WALL OR TANK TOP MOUNTING
  • PERFORATED STEEL TUBE
  • DIE CAST ALUMINIUM BUSHING WITH O Ring ( SAE THREADS)
  • MAX.TEMP 80° C

TANK MOUNTED DIFFUSER - TMSD

  • TANK MOUNTED DIFFUSER
  • SIDE WALL OR TANK TOP MOUNTING
  • PERFORATED STEEL TUBE
  • BUSHING DIE CAST / STEEL WITH O RING ( SAE THREADS)
  • MAX.TEMP 80° C

TANK MOUNTED DIFFUSER - TMSUD

  • TANK MOUNTED DIFFUSER
  • SIDE WALL OR TANK TOP MOUNTING
  • PERFORATED STEEL TUBE
  • DIE CAST ALUMINIUM BUSHING WITH O Ring ( SAE THREADS)
  • MAX.TEMP 80° C

MAGNETIC TANK CLEANER - MT

  • NO MOVING PARTS
  • DECREASES WEAR ON PUMP/ VALVES ETC
  • ELIMINATES TROUBLESOME FRROUS FINES
  • KEEPS HYDRAULIC OILS CLEANER
  • EASILY REMOVED WITHOUT DOWNTIME OR LOSS OF OIL
  • IMPROVED PERFORMANCE WHEN USED WITH DIFFUSER
  • EXCEPTIONALLY EFFICIENT LARGE CERAMIC MAGNETS

WELD FLANGES - TWF

  • STEEL CONSTRUCTION ( Optional SS Available )
  • BLACK PHOSPHATE FINISH ( SUITABLE FOR WELDING )
  • FLANGED DESIGN MINIMISES WARPAGE
  • ‘ O ‘ RING PORT ENSURES LEAK PROTECTION

RUBBER BUSHINGS - GMT

  • RUBBER BUSHES IN NITRILE RUBBER
  • SEALS PIPES PASSING THROUGH TANK TOP COVER PLATE
  • 1/8“ TO 2“ PIPE & TUBE DIAMETERS
  • COMPATIBLE WITH MINERAL & PETROLEUM BASED FLUIDS
  • REDUCES VIBRATION & NOISE
  • NOT TO USE BELOW OIL LEVEL
  • AVAILABLE IN PACK OF 5 PIECES EACH SIZE

Elevate with premium pipes and fittings!

CALL US NOW
