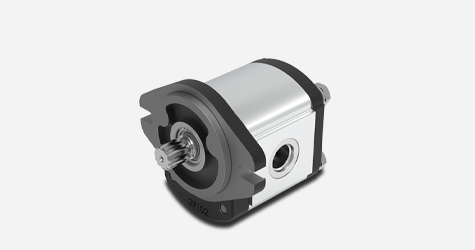

2XP – GROUP 2
New range of pumps with aluminium body and cast iron flanges
Thanks to new oversized shaft, these pumps are particularly suitable for all applications where traditional aluminium pumps are used at the limit of their performance.
Its new modular construction ensures an increased versatility maintaining the same configurations of 2SP Series allowing new options.
Group: Group 2
Displacement cm ³/giro – (in ³/rev): Group 2 – from 4 to 31,5 (from 0.24 to 1.92)
Max. Pressure bar – (psi): up to 250 (3600)
Speed rotation rpm: up to 4000

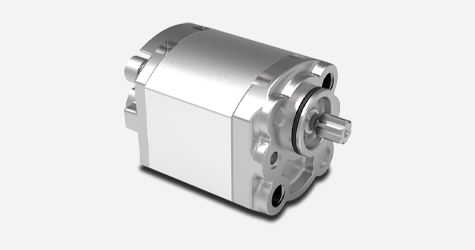

1SP – GROUP 1
Three piece pumps with aluminum body and flanges, available in single or multiple pump configurations. Stackable with pumps of different families. Wide range of shafts and flanges. Configurations with integrated valves are available.
Group: Group 1
Displacement cm ³/giro – (in ³/rev): Group 1 – from 0,89 to 9,78 (from 0.05 to 0.60)
Max. Pressure bar – (psi): up to 260 (3750)
Speed rotation rpm: up to 6000

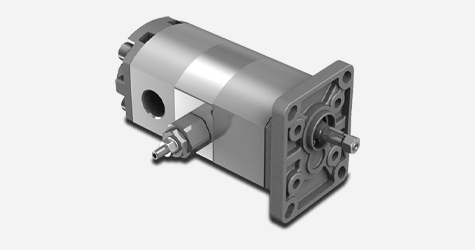

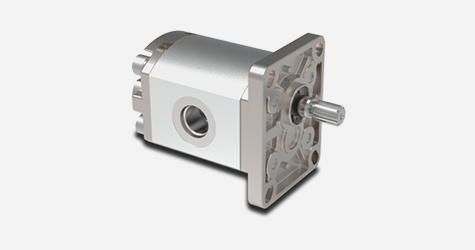

2XM – GROUP 2
New range of unidirectional and reversible motors built in three pieces with aluminum body and cast iron flanges.
The oversized shaftsmake these notors partucularly suitable for installation on mobile equipment intended for heavy duty operating cycles.
Wide range of flanges and configurations with integrated valves are available.
Group: Group 2
Displacement cm ³/giro – (in ³/rev): Group 2 – from 4 to 31,5 (from 0.24 to 1.92)
Max. Pressure bar – (psi): up to 250 (3600)
Speed rotation rpm: up to 4000
1SM – Group 1
Unidirectional and reversible motors built in three pieces with aluminum body and flanges. Wide range of shafts and flanges. Configurations with integrated valves are available.
Group: Group 1
Displacement cm ³/giro – (in ³/rev): Group 1 – from 0,89 to 9,78 (from 0.05 to 0.60)
Max. Pressure bar – (psi): up to 260 (3750)
Speed rotation rpm: up to 6000
Displacement: 0.25 cc/rev…2 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 3500 rpm
Fluid temp. range: -10 oC …+80 oC
Fluid:

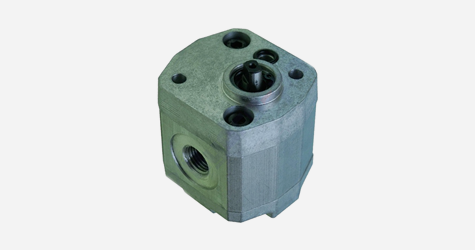

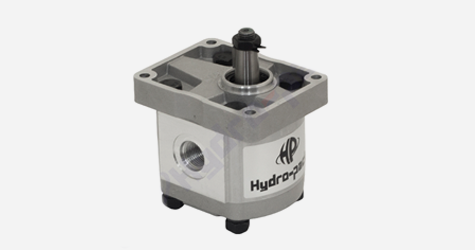

00A0.25X063 Hydraulic Gear Pump
00A0.25X063
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 00 external gear pumps with different specifications.
* Rotation is anti – clockwise from shaft view
* Ports are Metric threaded ports.
* Max. pressure refers to P1 pressure (Max. continuous pressure)

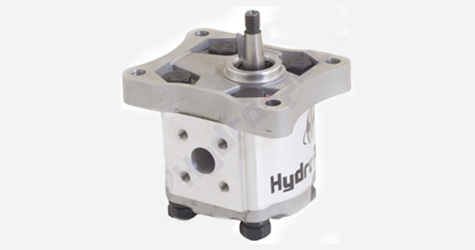

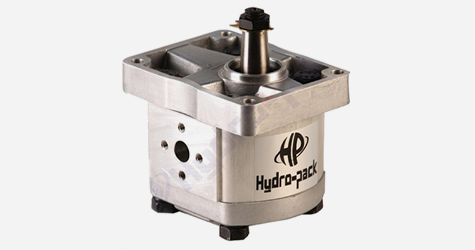

C12X Hydraulic Gear Pump
C12X | C12XH
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 1 aluminum external gear pumps with different specifications.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)

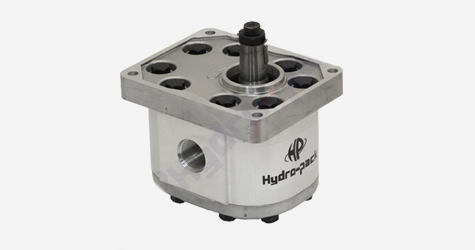

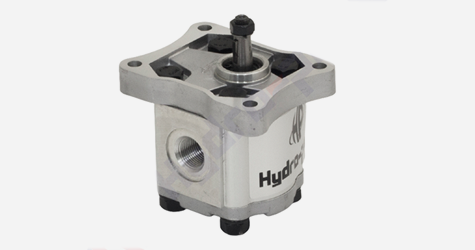

C12XTM Hydraulic Gear Pump
C12XTM | C12XTMH
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 1 aluminum external gear pumps with different specifications.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure * Ports are Metric Threaded
`C10XTM Hydraulic Gear Pump
C10XTM|
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 2 aluminum external gear pumps with different specifications.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
*Ports are metric threaded

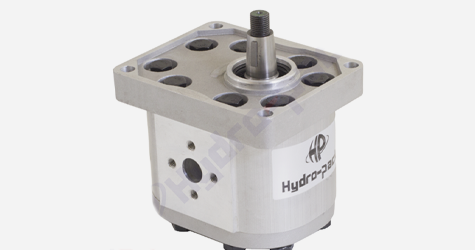

A43X Hydraulic Gear Pump
A43X | A43XH
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 3 aluminum external gear pumps with different specifications.
* Rotation is anti-clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
C43X Hydraulic Gear Pump
C43X | C43XH
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 3 aluminum external gear pumps with different specifications.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
C43XT Hydraulic Gear Pump
C43XT | C43XTH
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 3 aluminum external gear pumps with different specifications.
* Rotation is clockwise from shaft view
* Max. pressure refers to P1 pressure (Max. continuous pressure)
* Ports are BSPP (Gas) threaded

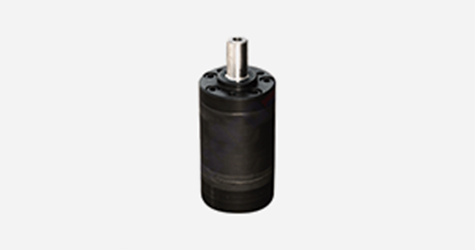

MM8C HYDRAULIC MOTOR
MM8C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic or fluid energy into mechanical power. They work in tandem with a hydraulic pump which converts mechanical power into fluid or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hydropack provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MM Series have compact design. The rollerless gear rim makes these types suitable for long operating periods at moderate pressures or short operating periods at high pressures. Different shaft, flange and port options are available.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 8. cc/rev
Flange Type: 3 bolts mount
Shaft Type: straight keyed shaft 16 mm DIN6885
Ports: G 3/8
Max. Pressure: 140 bar
Max. Speed: 1950 rpm
Max. Torque: 1.1 daNm
MM12.5C HYDRAULIC MOTOR
MM12.5C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic or fluid energy into mechanical power. They work in tandem with a hydraulic pump which converts mechanical power into fluid or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hydropack provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MM Series have compact design. The rollerless gear rim makes these types suitable for long operating periods at moderate pressures or short operating periods at high pressures. Different shaft, flange and port optionsare available.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 12.5 cc/rev
Flange Type: 3 bolts mount
Shaft Type: straight keyed shaft 16 mm DIN6885
Ports: G 3/8
Max. Pressure: 140 bar
Max. Speed: 1550 rpm
Max. Torque: 1.6 daNm
MP25C HYDRAULIC MOTOR
MP25C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that converthydraulic or fluid energy into mechanical power. They work in tandem with a hydraulic pump which converts mechanical power into fluid or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hydropack provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MP Series have compact design. The rollerless gear rim makes these types suitable for long operating periods at moderate pressures or short operating periods at high pressures. Different shaft, flange and port optionsare available.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 25 cc/rev
Flange Type: 2 holes oval mounting flange
Shaft Type: straight keyed shaft 25 mm DIN6885
Ports: G 1/2
Max. Pressure: 175 bar
Max. Speed: 1408 rpm
Max. Torque: 3.3 daNm

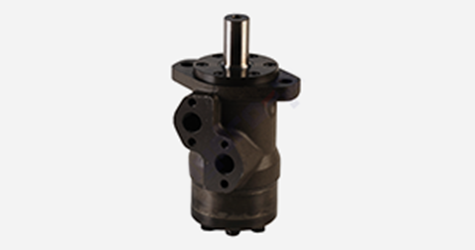

MR50C HYDRAULIC MOTOR
MR50C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MR series motors have rollers in the gear rim that reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear. This reduces friction to minimum. For this reason these motors have long operating life and better efficiency even at continuous high pressures.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 50 cc/rev
Flange Type: 2 holes oval mounting flange
Shaft Type: straight keyed shaft 25 mm DIN6885
Ports: G 1/2
Max. Pressure: 175 bar
Max. Speed: 775 rpm
Max. Torque: 10 daNm
MR80C HYDRAULIC MOTOR
MR80C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MR series motors have rollers in the gear rim that reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear. This reduces friction to minimum. For this reason these motors have long operating life and better efficiency even at continuous high pressures.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 80 cc/rev
Flange Type: 2 holes oval mounting flange
Shaft Type: straight keyed shaft 25 mm DIN6885
Ports: G 1/2
Max. Pressure: 175 bar
Max. Speed: 750 rpm
Max. Torque: 20 daNm
MH200C HYDRAULIC MOTOR
MH200C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MH series motors have rollers in the gear rim that reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear. This reduces friction to minimum. For this reason these motors have long operating life and better efficiency even at continuous high pressures.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 200 cc/rev
Flange Type: 4 holes oval mounting flange
Shaft Type: straight keyed shaft 32 mm DIN6885
Ports: G 1/2
Max. Pressure: 200 bar
Max. Speed: 370 rpm
Max. Torque: 51 daNm
MH250C HYDRAULIC MOTOR
MH250C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MH series motors have rollers in the gear rim that reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear. This reduces friction to minimum. For this reason these motors have long operating life and better efficiency even at continuous high pressures.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 250 cc/rev
Flange Type: 4 holes oval mounting flange
Shaft Type: straight keyed shaft 32 mm DIN6885
Ports: G 1/2
Max. Pressure: 200 bar
Max. Speed: 295 rpm
Max. Torque: 61 daNm
MS80C HYDRAULIC MOTOR
MS80C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MS series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 80 cc/rev
Flange Type: SAE-A 4 holes mounting flange
Shaft Type: straight keyed shaft 32 mm DIN6885
Ports: G 1/2
Max. Pressure: 230 bar
Max. Speed: 810 rpm
Max. Torque: 24 daNm
MS100C HYDRAULIC MOTOR
MS100C | M+S HYDRAULIC ORBIT MOTOR |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MS series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
Displacement: 100 cc/rev
Flange Type: SAE-A 4 holes mounting flange
Shaft Type: straight keyed shaft 32 mm DIN6885
Ports: G 1/2
Max. Pressure: 230 bar
Max. Speed: 750 rpm
Max. Torque: 30,5 daNm
These Pumps are widely used as a source of hydraulic power. They combine stable performance and robust construction with a wide range of delivery rates.
| Model Number | Geometric Displacement (cm³/rev.) | Max. Operating Pressure (Kgf/cm²) | Output Flow and Input Power | Shaft Speed Range (r/min) | Mass (Approx.) (Kg) |
|---|---|---|---|---|---|
| Max. | Min. | ||||
| PVR1T – 4 | 3.5 | 125 | Refer to Page 110 & 111 | 1800 | 750 |
| PVR1T – 6 | 5.5 | ||||
| PVR1T – 8 | 7.8 | ||||
| PVR1T – 10 | 8.7 | ||||
| PVR1T – 12 | 11.5 | 210 | |||
| PVR1T – 15 | 13.8 | ||||
| PVR1T – 17 | 16.0 | ||||
| PVR1T – 31 | 22.0 |
These pumps are widely used as a source of hydraulic power. They combine stable performance and robust construction with a wide range of delivery rates.
| Model Number | Geometric Displacement (cm³/rev.) | Max. Opr. Pressure (Kgf/cm²) | Output Flow and Input Power | Shaft Speed Range (r/min.) Max. | Min. | Mass (Approx.) (Kg.) Flange Mounting | Foot Mounting |
|---|---|---|---|---|---|---|---|
| PVR50-13 | 10.5 | 210 | Ref. Page 110, 111 & 112 | 1800 | 600 | 12 | 14.7 |
| PVR50-20 | 16.0 | ||||||
| PVR50-26 | 21.5 | ||||||
| PVR50-30 | 24.0 | ||||||
| PVR50-36 | 29.5 | ||||||
| PVR50-39 | 31.5 | ||||||
| PVR50-45 | 35.5 | ||||||
| PVR50-51 | 41.0 | ||||||
| PVR50-56 | 45.0 |

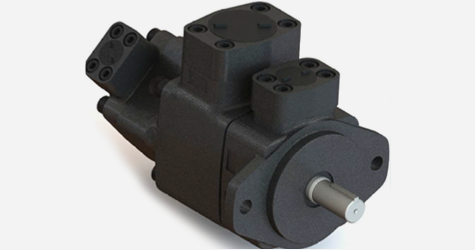

These double pumps consist of one PVR1T and one PVR50 series single pumps combined in tandem within a single housing and driven by a common shaft. Fluid delivered from the two separate ports can be either supplied to separate or common circuits.
| Model Number | Small Volume Pump Geometric Displacement (cm³/rev.) | Large Volume Pump Geometric Displacement (cm³/rev.) | Max. Opr. Pressure (Kgf/cm²) | Output Flow and Input Power | Shaft Speed Range (r/min.) | Mass (Approx.) Kg |
|---|---|---|---|---|---|---|
| PVR1050 | Refer Specification in page No. 103 | Refer Specification in Page No. 108 | 210 | Refer Page 106, 107, 110, 111 & 112 | Max. 1800 Min. 600 | Flange: 17.7 Foot: 20.5 |
These double pumps consist of one PVR 50 and one PVR 150 series single pumps combined in tandem within a single housing and driven by a common shaft. Fluid delivered from the two separate ports can be either supplied to separate or common circuits. These pumps are used in mobile application.
| Model Number | Small Volume Pump Geometric Displacement (cm³/rev.) | Large Volume Pump Geometric Displacement (cm³/rev.) | Max. Opr. Pressure (Kgf/cm²) | Output Flow and Input Power | Shaft Speed Range (r/min.) | Mass (Approx.) Kg |
|---|---|---|---|---|---|---|
| PVR50150 | Refer Specification in Page No. 108 | Refer Specification in Page No. 113 | 210 | Refer Page 110, 111, 112, 115 & 116 | Max. 1800* Min. 600 | Flange: 42.5 Foot: 49 |

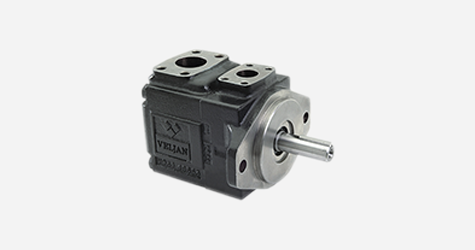

The VT6C Vane Pump is a fixed displacement, balanced vane-type hydraulic pump designed for medium-pressure industrial applications. Known for its compact size, quiet operation, and high efficiency, the VT6C is ideal for use in machine tools, presses, injection molding machines, and general industrial systems.

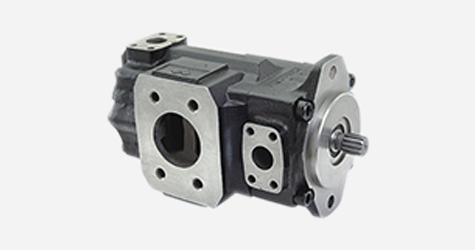

The VT6CCM is a double vane pump featuring two VT6C series sections housed in a single compact body. These pumps deliver dual hydraulic circuits from one shaft—ideal for systems that require two separate outputs or a combined flow.
| Model No. | Max. Pressure | Max. Displacement | Max. | Mounting Standard | ||
|---|---|---|---|---|---|---|
| psi | bar | in³ / rev | cm³ / rev | rpm | ||
| VT6CCM | 4000 | 275 | 1.32 – 12.20 | 22 – 200 | 2800 | SAE-B |

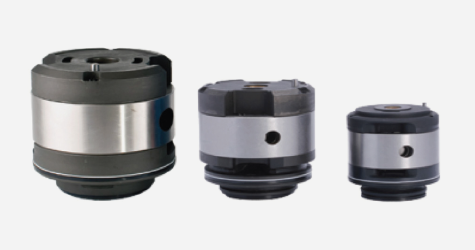

The HT Series cartridge kit is interchangeable with DENISON. The balanced design and double lip vane tech- nology are key features in providing a contamination resis- tant and reliable cartridge kit. High pressure and variable speed capabilities, extremely low noise make this fluid power source ideal for all kind of applications.
With these exceeding high qualities, our HT Series cartridg- es have satisfied many OEM clients around the world for more than 40 years.
Delivery USgpm | Displacement cm3/r 1(in3/r) | Min. Speed rpm | Max. Speed rpm | Max. Pressure bar (psi) | Typical Delivery at max speed & pressure L/min (USgpm) | Typical Input Power at max speed & pres- sure kW (hp) | Weight kg (lb) |
