Cylinder Components

GLAND NUT

GLAND NUT

(Kalite) Çelik Boğaz (Kep)

KOD	MALZEME TANIMI	FİYAT / $
6V200M2FG	2`li Valf Manifoltu	10.5
6V200M3FG	3`lü Valf Manifoltu	13.25
6V200M4FG	4`lü Valf Manifoltu	16
6V200M5FG	5`li Valf Manifoltu	18.75
6V200M6FG	6`lı Valf Manifoltu	21.5
6V200M7FG	7`li Valf Manifoltu	24.25
6V200M8FG	8`li Valf Manifoltu	27
6V200M9FG	9`lu Valf Manifoltu	29.75
6V200M10FG	10`lu Valf Manifoltu	32.5
6V200M11FG	11`li Valf Manifoltu	35.25
6V200M12FG	12`li Valf Manifoltu	38
6V200M13FG	13`lü Valf Manifoltu	40.75
6V200M14FG	14`lü Valf Manifoltu	43.5
6V200M15FG	15`li Valf Manifoltu	46.25
6V200M16FG	16`lı Valf Manifoltu	49
P-6V0500M-R2	Körleme Pleyti	1.5

PISTON

PISTON

Çelik Piston Düz Tip
Çelik Piston Düz Tip
KOD	DEPLASMAN (cm³/dev)	DEBİ – LT (1500 dev/dk)	MAX. BASINÇ (Bar)	MAX. DEVİR (dev/dk)	ADAPTÖR ÖLÇÜSÜ		FİYAT / ₺
R1PN 040 AX3/CX3	4	5.7	250	3000	1/2″ 40 mm	3/8″ 35 mm	799
R1PN 061 AX3/CX3	6.1	8.7	250	3000	1/2″ 40 mm	3/8″ 35 mm	799
R1PN 082 AX3/C3X	8.2	11.8	250	3000	1/2″ 40 mm	3/8″ 35 mm	799
R1PN 095 AX3/CX3	9.5	13.1	250	3000	1/2″ 40 mm	3/8″ 35 mm	799
R1PN 119 AX3/CX3	11.9	17.1	250	3000	1/2″ 40 mm	3/8″ 35 mm	799
R1PN 140 AX3/CX3	14	20.1	250	3000	1/2″ 40 mm	3/8″ 35 mm	889
R1PN 168 AX3/CX3	16.8	24.1	250	3000	1/2″ 40 mm	3/8″ 35 mm	889
R1PN 192 AX3/CX3	19.2	27.2	250	3000	1/2″ 40 mm	3/8″ 35 mm	889
R1PN 229 AX3/CX3	22.9	32.9	210	3000	1/2″ 40 mm	3/8″ 35 mm	889
R1PN 281 AX3/CX3	28.1	40.4	175	3000	1/2″ 40 mm	3/8″ 35 mm	889

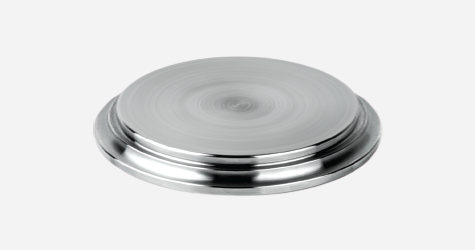

END CAP

END CAP

ÜRÜN KODU	L	L1	L2	D	D1
GDC-AK-32×40	15	5	5	40	32
GDC-AK-35×45	15	5	5	45	35
GDC-AK-40×50	15	5	5	50	40
GDC-AK-45×55	15	5	5	55	45
GDC-AK-50×60	15	5	5	60	50
GDC-AK-50×65	15	5	5	65	50
GDC-AK-55×65	15	5	5	65	55
GDC-AK-60×70	15	5	5	70	60
GDC-AK-60×80	15	5	5	80	60
GDC-AK-63×75	15	5	5	75	63
GDC-AK-65×80	15	5	5	80	65
GDC-AK-70×85	15	5	5	80	70
GDC-AK-75×90	15	5	5	90	75
GDC-AK-80×95	15	5	5	95	80
GDC-AK-80×100	15	5	5	100	80
GDC-AK-85×100	20	9	5	100	85
GDC-AK-90×105	20	9	5	105	90
GDC-AK-90×110	20	9	5	105	90
GDC-AK-100×115	20	9	5	115	100
GDC-AK-100×120	20	9	5	120	100
GDC-AK-110×130	20	9	5	130	110
GDC-AK-115×130	20	9	5	130	115
GDC-AK-120×140	20	9	5	140	120
GDC-AK-125×145	20	9	5	145	125
GDC-AK-125×150	20	9	5	150	125
GDC-AK-130×150	20	9	5	150	130
GDC-AK-140×160	20	9	5	160	140
GDC-AK-150×170	20	9	5	170	150
GDC-AK-160×190	25	9	5	180	160
GDC-AK-170×200	25	9	5	200	170
GDC-AK-180×210	25	9	5	210	180
GDC-AK-200×245	30	9	5	245	200
GDC-AK-220×270	30	9	8	270	220
GDC-AK-230×280	30	9	8	280	230
GDC-AK-250×300	30	9	8	300	250

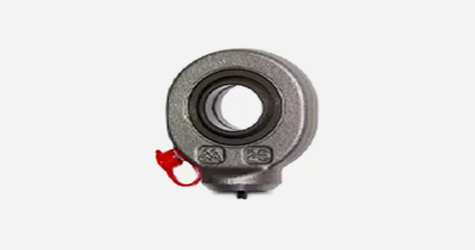

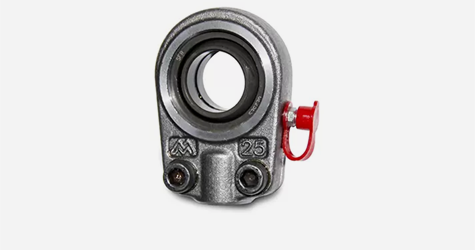

Cylinder Bearings

Cylinder Bearings

TYPES

KOD	D	I	S	LF	D1	D2	D3	D4	S1	S2	L	L1	F	a	CİVATA
PR 20 U	20	50	16	17	56	46	25	24.1	19	21	80	25	M16x1,5	9	M8x20
PR 25 U	25	50	20	17	56	46	25	29.3	23	21	80	28	M16x1,5	7	M8x20
PR 30 U	30	60	22	23	64	50	32	34.2	28	26	94	30	M22x1,5	6	M8x25
PR 35 U	35	70	25	29	78	66	40	39.7	30	28	112	38	M28x1,5	6	M10x30
PR 40 U	40	85	28	36	94	76	49	45	35	33	135	45	M35x1,5	7	M10x35
PR 50 U	50	105	35	46	116	90	61	56	40	37	168	55	M45x1,5	6	M12x40
PR 60 U	60	130	44	59	130	120	75	66.8	50	46	200	65	M58x1,5	6	M16x45
PR 70 U	70	150	49	66	157	130	86	77.8	55	51	232	75	M65x1,5	6	M16x50
PR 80 U	80	170	55	81	178	160	105	89.4	60	55	265	80	M80x2	6	M20x55
PR 90 U	90	210	60	101	210	180	124	98.1	65	63	323	90	M100x2	5	M20x60
PR 100 U	100	235	70	111	234	200	138	109.5	70	65	360.7	105	M110x2	7	M24x65

KOD	d	s	ı	D1	D2	S1	L	a
S 20 N	20	16	38	50	24.1	19	63	9
S 25 N	25	20	45	55	29.3	23	72.5	7
S 30 N	30	22	51	65	34.2	28	83.5	6
S 35 N	35	25	61	83	39.7	30	102.5	6
S 40 N	40	28	69	101	45	35	119	7
S 45 N	45	32	77	111	50.7	60	132	7
S 50 N	50	35	88	123	56	40	149.5	6
S 60 N	60	44	100	140	66.8	50	170	6
S 70 N	70	49	115	164	77.8	55	197	6
S 80 N	80	55	141	180	89.4	60	231	6
S 90 N	90	60	150	226	98.1	65	263	6
S 100 N	100	70	170	250	109.5	70	295	6

KOD	D	I	S	D1	D2	D3	D4	S1	L	L1	L2	a
S 20 C	20	38	16	53	27.5	24.1	4	13	64.5	27.5	3	9
S 25 C	25	45	20	64	33.5	29.3	4	17	77	33	4	7
S 30 C	30	51	22	73	40	34.2	4	19	87.5	37.5	4	6
S 35 C	35	61	25	82	47	39.7	4	21	102	43	4	6
S 40 C	40	69	28	92	52	45	4	23	115	48	5	7
S 45 C	45	77	32	102	58	50.7	6	27	123	52	5	7
S 50 C	50	88	35	112	62	56	6	30	144	59	6	6
S 60 C	60	100	44	137	70	66.8	6	38	167.5	72.5	8	6
S 70 C	70	115	49	161	80	77.8	6	42	195	86	10	6
S 80 C	80	141	55	180	95	89.4	6	47	231	98	10	6
